3D Printed ClickFet Boro Mod

$110.00
3D Printed ClickFet Boro Mod

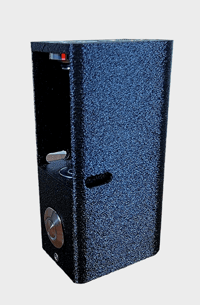

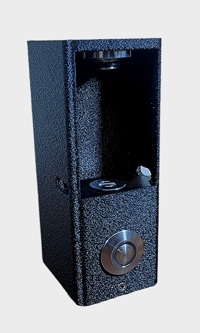

You wanted a small 18650 boro mod so here it is. I designed this boro mod to be as compact as possible without sacrificing the bodies strength so it will last. First I added a light texture finish giving it a clean look and nice feel in the hand. It has an open boro design to show off your boro and allow for maximum air flow. I used the same silver plated boro contacts as the DNA100c mod for a solid boro connection. The 18650 battery cell is housed in a ModMaker stainless steel tube again with silver pin contact. The mod gets its power thru a Click-Fet chip which allows for a full unregulated mod feel while still having some safety features. I have wired in a halo LED fire button which gives the chips feedback thru flashing the led. The body is 3D printed out of PETG material giving you a high temp food grade material that is safe to clean with alcohol. Is made out of a one piece design with a small door on the bottom for me to wire everything, this design makes the body extra strong.

Customize it!
Body Color - Choose from any of the available colors (Add color choice in notes at checkout)
Fire button - Black or Stainless Steel
***LED color may vary depending on availability***

Click-Fet Chip Specifications:
- Mosfet:- N-Channel 30v 100A LFPAK, RDSon 1.35m Ω (typ), VGS(th) 1.46v (typ)
- Operational voltage: 3.1 ± 0.1V - 4.20v
- Low voltage protection: 3.1 ± 0.1V
- Reverse polarity protection: Yes. Mod will auto fire but board will not burn out.
- Idle current: <10uA
- Timeout Protection: Yes
- Amp Limit: 46.67A (4.2v @ 0.09Ω)

Functions and LED Information
- Low Resistance Protection: When resistance is 0.08 ± 0.01Ω LED's flash 3 times and will not power the mosfet. This is also Short Protection.
- On/Off Function: When off, 5 clicks turns on and LED's flash 5 times. When on, 5 clicks turns off and LED's flash 5 times.
- Low Voltage: When battery is lower than 3.1 ± 0.1V LEDs flash 10 times and will not power the mosfet.
- Time Out Protection: If the mod is fired for 10 ± 1s the LED's will flash 8 times and will stop powering the mosfet.
- Reverse Polarity Protection. If the battery is around the wrong way the mod will auto fire.
- In Use: When powering the mosfet the LED will be on.
