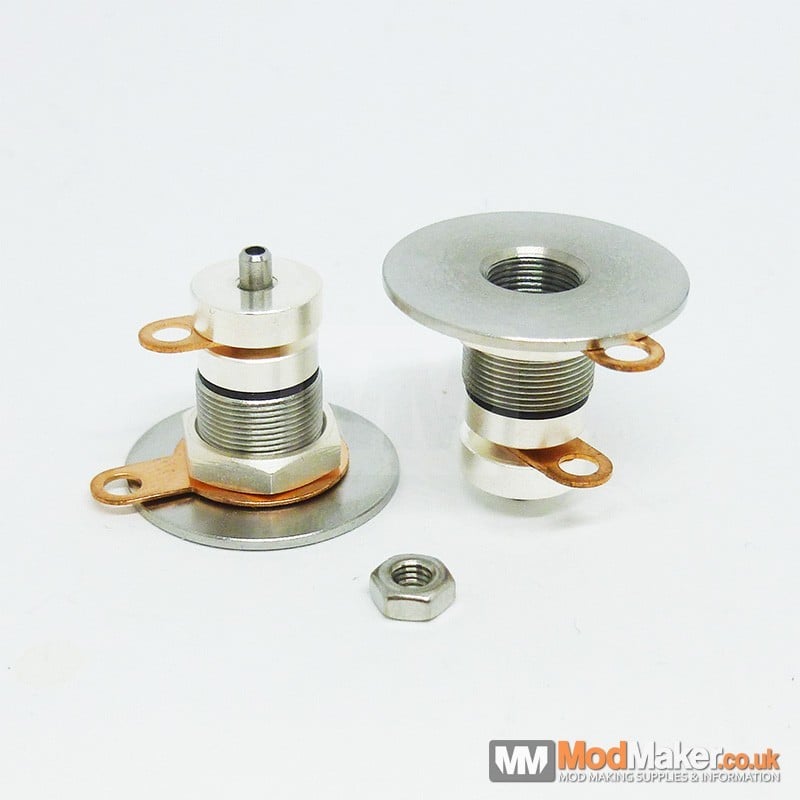

MM510 V2 Squonker (22mm*1mm)

Designed by Mod Maker, I am pleased to bring you what I think is the best spring loaded squonker 510 available.
They have listened to user feedback for a long time now and have worked to try to resolve some issues with current 510 designs.

Features:

Glass filled peek insulator. This material can take some serious heat and is much stronger than Delrin or Ultem
Wave spring. A stiffer spring for a better connection.
Typical spring pressure: 4.2kg (42N)
Oring / gasket embedded into the positive pin to eliminate leakage.
Oring embedded into the insulator to eliminate leakage between the insulator and the body threads.
Negative solder tab included for non mechanical squonkers.
Washer Options. You can choose from 18mm, 22mm, 24mm, 25mm, & 30mm in black aluminium, brass and stainless steel.
Hex Head on the positive pin to tighten the positive nut
Materials:

Body Top Plate: Stainless Steel
M10 Securing Nut: Silver Plated Brass
Insulator: Glass Filled Peek
Pin: Stainless Steel
Spring Cap: Silver Plated Brass
10mm Positive Round Nut: Silver Plated Copper
Negative & Positive Solder Tabs: Copper

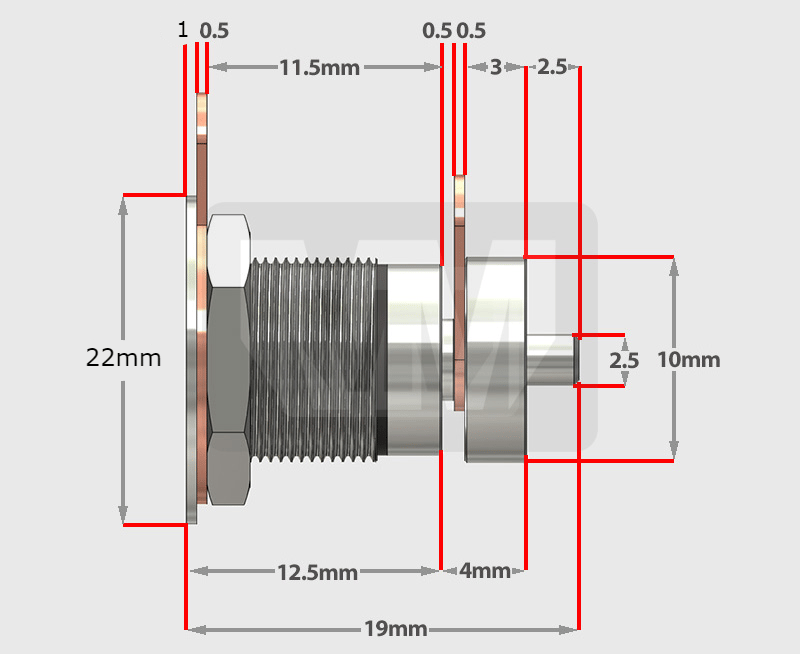

The threaded section is m10 (10mm x 0.5mm) thread. The top plate is 22mm diameter and 1mm thick. The body of the 510 is made from stainless steel. We did consider making it in other materials but we want these to last and stainless is the hardest material we could use.
It also features a 2mm hex head on the pin for tightening the positive nut and comes with a standard m3 hex nut if you want to replace the positive nut.
