MM Battery Tube V2 18650

Introducing the V2 Battery Tube, the most usable battery tube on the market.

We've taken feedback from customers to create a battery tube that is as usable as possible. This model features a superior glass filled peek insulator that can withstand serious heat, so you can solder the positive without worry of melting anything.

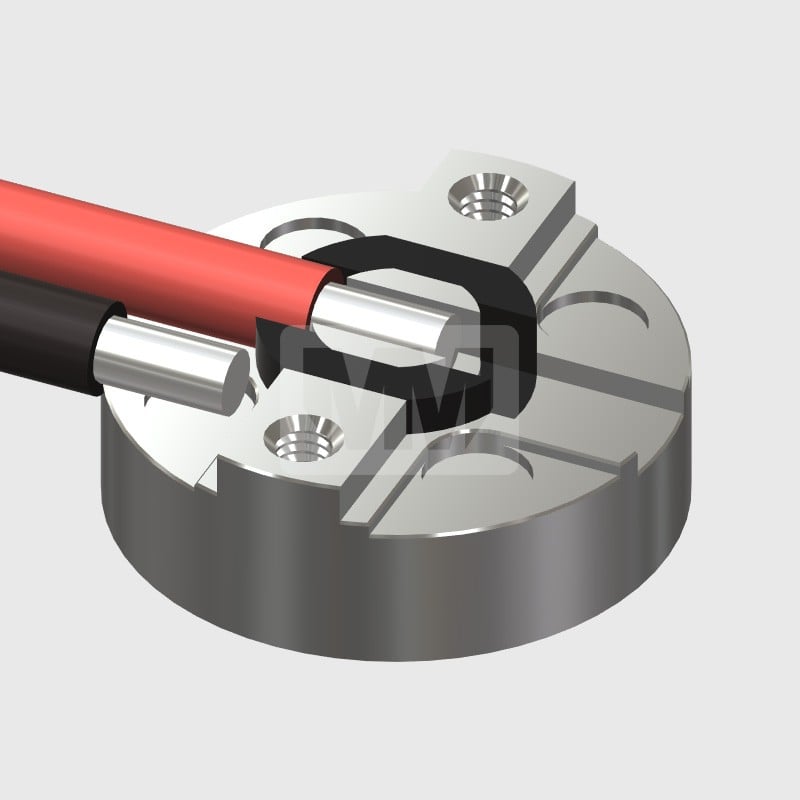

The top cap has four negative solder points that are easy to reach and heat up. It also has two M2.5 threaded holes that you can use for creative applications. These holes are spaced to fit our MM510 Micro Screw Attach model.

We've increased the thread size on the tube and battery cap to make it easier to tighten the cap.

In short, we've chosen the best parts and designed these tubes to give you the lowest possible voltage drop in the smallest possible size.

Parts & Materials:
-High quality SS304 tube
-Tinned brass top cap
-Tinned brass positive pin
-Glass filled peek insulator
-Tinned brass battery cap
-Dimensions

Diameter: Approx 21mm
Height: Approx 72.5mm
